I-MPPT Solar Charge Controller | I-High-Efficiency Solar Regulator
Isilawuli Se-Solar Charge - I-Powering Efficient Off-Grid Energy Solutions

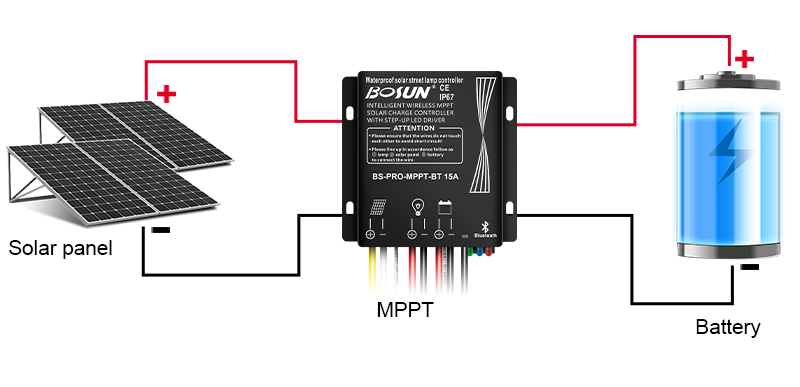

Isilawuli seshaja yelanga siyisisekelo sanoma iyiphi i-off-grid noma i-hybrid solar system, elawula ngobuchwepheshe ukugeleza kwamandla ukusuka kumaphaneli elanga ukuya kumabhethri nemithwalo exhunyiwe. Izilawuli zethu zokushaja zelanga ze-MPPT ezithuthukisiwe zisebenzisa ubuchwepheshe be-Maximum Power Point Tracking (MPPT) ukuze zithuthukise ugesi kanye nowamanje, zikhiphe amandla afinyelela kwangu-30% engeziwe kunezilawuli ze-PWM zendabuko. Lokhu kubenza babe ama-optimizers wangempela wamandla elanga, okuqinisekisa ukusebenza kahle okuphezulu. Ngaphandle kokusebenza kahle, banikeza isivikelo esiqinile sebhethri lelanga ekushajweni ngokweqile, ekukhishweni okujulile, nasezindaweni eziphakeme ze-voltage, kuyilapho izici ezifana namakhono okulawula ilanga okuqapha okukude zinikeza ukugada okuhlakaniphile, kwesikhathi sangempela. Kungakhathaliseki ukuthi izibani zasemgwaqweni zinika amandla, amasayithi e-telecom, noma amakhabethe akude, abalawuli bethu baletha ukwethembeka kwesikhathi eside nokusebenza okuphezulu.
Kungani Izilawuli Ze-Solar Charge Zibalulekile
- Impilo Yebhethri Nokuphila Kade: Izilawuli zethu zelanga ezisebenza kahle kakhulu zivikela amabhethri ngokuvimbela ukushaja ngokweqile, ukuchithwa okujulile, kanye nama-voltage spikes, andise ubude besikhathi sokuphila ngokufika ku-50%.
- I-Maximum Power Point Tracking (MPPT): Inhliziyo yezilawuli zethu ze-solar ze-MPPT, lobu buchwepheshe bulungisa ngokuguqukayo ukuphuma kwephaneli, kukhuphule isivuno samandla kufika ku-30% ngaphezu kwamamodeli e-PWM—okubenza babe izilungiseleli zamandla elanga ezihlukile.
- Ukuzinza Kwesistimu: Ukuvikela okwakhelwe ngaphakathi kumasekhethi amafushane, ukuhlehla kwe-polarity, nezinga lokushisa elidlulele kuqinisekisa ukulethwa kwamandla okungaguquki kanye nokuphathwa kokushaja kwelanga okuthembekile.
- I-Scalability & Intelligence: Ngoxhumo lwe-IoT, izilawuli zethu zokuqapha ezikude zihlangana ngaphandle komthungo nezinkundla zedolobha elihlakaniphile, zinikeza ukuloga kwedatha kanye nemininingwane engenzeka.
Izinzuzo ezibalulekile ze-Mpt Solar Charge Controller
- Ukushaja Ngempumelelo Okuphezulu: Izilawuli zokushaja zelanga ze-MPPT zifinyelela> 99% ukusebenza kahle kokulandela kanye> 97% ukusebenza kahle kokushaja, okuholela ekuphathweni kokushaja kwelanga.
- Ukuvikelwa kwebhethri yeSolar: Ama-algorithms wokushaja wezigaba eziningi avikela i-lithium, i-lead-acid, namabhethri ejeli ukuze aphile isikhathi eside.
- Ukuxhumana Okuhlakaniphile: Izinketho ze-Bluetooth, RS485, noma i-LTE/5G zinika amandla izici zesilawuli sokuqapha esikude kanye nezibuyekezo ze-firmware ezilula.
- Izivikelo Eziqinile: Ukuvikela okuphelele ngokumelene ne-over-voltage, over-current, reverse polarity, kanye nokweqisa kwezinga lokushisa.
- Ukwethembeka Okudlulele: Isilinganiso se-IP67, sisebenza ukusuka ku--30°C kuya ku-+60°C, simelana nenkungu kasawoti nezimo ezinzima.
- Imininingwane Eqhutshwa Ngedatha: Amadeshibhodi esikhathi sangempela nezixwayiso ezizenzakalelayo zithuthukisa ukunakekelwa kanye nokwenza kahle.
Izici Ezithuthukile

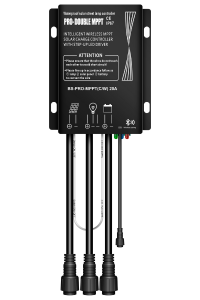

- Iziteshi ezimbili ze-MPPT: Phatha ngokuzimela izingxenye ezimbili zelanga, uthuthukisa ukuguquguquka nokusebenza kahle kwezithuthukisi zamandla elanga.
- Izindlela Ezine Zokonga Amandla: Lungisa okukhiphayo komthwalo ngokusekelwe esimweni sokushajwa kwebhethri (i-SOC) namashejuli, uthuthukise ukuphathwa kokushajwa kwelanga.
- Amaphrofayli Wenkokhelo Eyenziwe Ngokwezifiso: Eyenzelwe i-LiFePO₄, i-AGM, iGel, namabhethri e-Flooded-Cell, iqinisekisa ukuvikelwa kwebhethri lelanga okuphezulu.
- Ukuhlanganiswa Kwenzwa: Isekela izinga lokushisa, ukukhanya, nezinzwa ezinyakazayo zokulawula umthwalo oguquguqukayo.

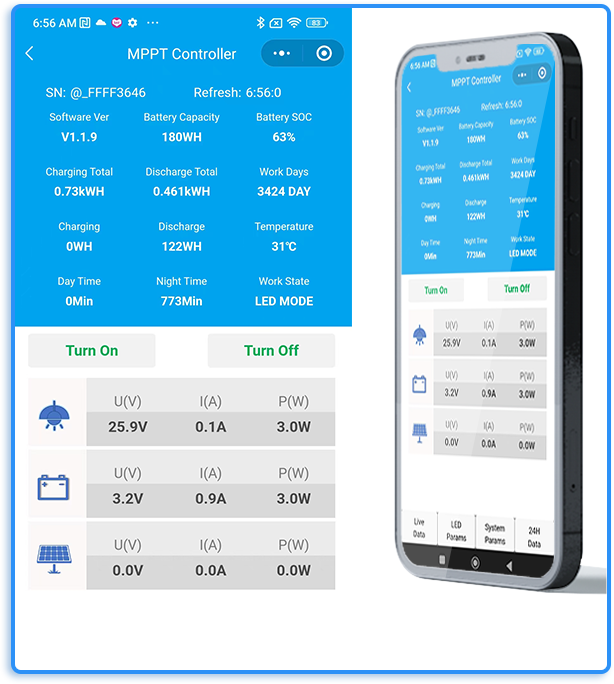

- I-Remote Diagnostics: Finyelela ku-voltage, idatha yamanje, neyomlando ngohlelo lokusebenza noma iwebhu, uphawu oluphawulekayo lezilawuli zethu zokuqapha ezikude.
Ukucaciswa Kwezobuchwepheshe Ngokubuka nje

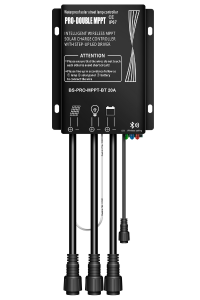

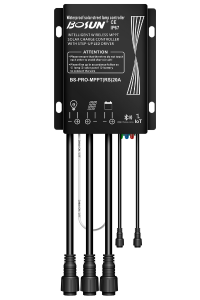

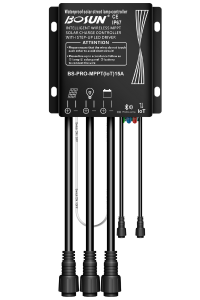

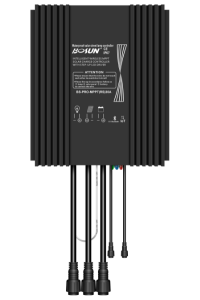

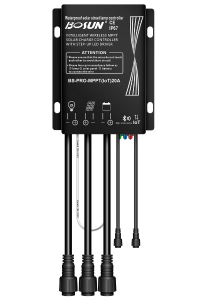

| Ukucaciswa | I-MPPT-BT-20A | I-MPPT-BT-15A | I-MPPT(C/W)20A | I-MPPT-TMAX2.0 | I-MPPT-BT-30A |
| I-Voltage System yebhethri | 3.2v~12.8v | 3.2v~12.8v | 3.2v~12.8v | 3.2v~12.8v | 3.2v~25.6v |
| I-voltage ephezulu ye-PV yokufaka | 24v | 24v | 24v | 24v | 48v |
| I-voltage ephezulu ye-PV evulekile yesekethe | 30v | 30v | 52v | 30v | 52v |
| Ububanzi be-voltage ye-MPPT
| 8~24v | 8~24v | 8~24v | 8~24v | 8~52v |
| Ubukhulu bamanje bokushaja kwebhethri | MAX=20A | MAX=15A | MAX=20A | MAX=15A | MAX=30A |
| Amandla okufaka we-PV aphezulu | 80w~260w | 55w ~ 200w | 80w~260w | 55w ~ 200w | 90w~680w |
| Isilinganiso Sokuvikela | IP67 | IP67 | IP67 | IP67 | IP67 |
I-Gebosun Solar Street Light Controller Protection Mechanism
| Ishaja indlela yokuvikela izinga lokushisa elingaphezulu lokushisa | Lapho ishaja, uma izinga lokushisa langaphakathi lesilawuli lidlula u-90°C, ukushaja kuzoma futhi ngeke kuqhubeke kuze kube yilapho izinga lokushisa lehla liye ku-85°C. | |||||||
| Vula indlela yokuvikela isekethe | Uma ukukhanya kuvuliwe, uma ibhodi lokukhanya le-LED livuliwe, ukuphela kokuphumayo kuzokhushulwa ku-32V ukuze kugcinwe isimo se-voltage engashintshi, futhi i-applet izobonisa i-LED OPEN. | |||||||
| Indlela yokuvikela ukukhishwa ngaphezulu | Uma i-voltage yebhethri ingaphansi kwendawo yokukhipha kakhulu ngesikhathi sokuphuma, okukhiphayo kuzoma futhi i-applet izobonisa i-BAT LOW. Isivikelo sizosuswa kuphela uma kusemini futhi. | |||||||
| Indlela yokuvikela isekethe emfushane okukhiphayo | Uma okukhiphayo kuyi-circuited short-circuited, okukhiphayo kuzoma futhi i-applet izobonisa i-LED SHORT. Isivikelo sizosuswa kuphela uma kusemini futhi. | |||||||
| Indlela yokuvikela yamanje ephezulu yokushaja | Ngesikhathi sokushaja, uma amandla ephaneli ye-photovoltaic emakhulu kakhulu futhi ecupha umthamo omkhulu wamanje wokushaja, isistimu izogcina ukushaja kwamanje okuphezulu okungaguquki kwamanje futhi ngeke kwande. | |||||||
| Indlela yokuvikela ukukhokhiswa ngokweqile | Uma i-voltage yebhethri ifinyelela endaweni ye-voltage yokushajwa ngokweqile, imodi yokushaja kagesi engashintshi izogcinwa kuze kube yilapho yamanje ifika ku-0, futhi i-applet ibonisa i-BAT FULL. | |||||||
Kungani Khetha Izilawuli Zethu Zokushaja Zelanga?
- I-Patented Dual-MPPT Technology: Ikhulisa amandla ezimeni ezinomthunzi.
- I-Modular IoT Integration: Izinketho zokuxhumana eziguquguqukayo.
- Ukuthembeka Okuqinisekisiwe Kwenkundla: Ngaphezulu kwe-1,000 ukufakwa emhlabeni jikelele kusukela ngo-2015.
- Ukusekela Okuphelele: I-hotline engu-24/7, ukuxazulula inkinga ngesilawuli kude, nezibuyekezo.
- Izikhathi Zokuhola Zokuncintisana: Izinsuku ezingu-5-7 kusukela eku-odeni kuya ekuthunyelweni.
Imibuzo Evame Ukubuzwa Isilawuli Se-Solar Charge
Isilawuli seshaja yelanga iyisisetshenziswa esilawula ukuhamba kukagesi phakathi kwamaphaneli elanga nebhange lebhethri kusistimu yamandla elanga. Iqinisekisa ukuthi amabhethri ashajwe ngendlela efanele, ivikela ukushajwa ngokweqile kanye nokwelula impilo yebhethri. Empeleni, isebenza njengesilawuli ukuqinisekisa ukuthi ibhethri ithola i-voltage efanele kanye namanje kumaphaneli elanga.
Yebo—i-dual-MPPT isekela ama-arrays afika ku-150V ngalinye kuzilawuli zethu zokushaja zelanga ze-MPPT.
Iyini i-Solar Charge Controller? Isilawuli sokushaja noma isilawuli sokushaja ngokuyisisekelo siyi-voltage kanye/noma isilawuli samanje ukuze amabhethri angashajwa kakhulu. Ilawula i-voltage kanye namanje okuvela kumaphaneli elanga aya ebhethrini.
Kufika ezinsukwini ezingu-7 ngamabhethri e-LiFePO₄, ngenxa yokuphatha ukushaja kwelanga okuphumelelayo.
Yebo—layisha amaphrofayili ngohlelo lokusebenza ukuze uthole ukuvikeleka okuphelele kwebhethri lelanga.
Isayinwe futhi ibethelwe ngedijithali (TLS 1.2+) ukuze uthole izibuyekezo zesilawuli selanga sokuqapha esikude.
Okokufaka kwe-PV kuyavalwa, izexwayiso ziyathunyelwa, futhi imicimbi iyangena—ukulawula ukushaja kwelanga okuqinile kuyasebenza.
Yebo—i-Modbus/RS485 kanye ne-MQTT APIs aqinisekisa ukuhambisana.
Izinketho zifaka phakathi abakaki, i-DIN-rail, noma ikhithi ye-pole-box.
Iminyaka emi-5 kuma-electronics, iminyaka emi-2 ezingxenyeni eziwumshini.
Yebo—ukuhlola kwamahhala kuthuthukisa ukusethwa kwakho kwe-solar power optimizer.
Isilawuli seshaja yelanga silawula amandla kagesi ukuze sivimbele ibhethri ekuhanjweni kukagesi okungalilimaza futhi kunciphise ukuphila kwalo. Isilawuli seshaja yelanga sibalulekile uma i-PV yakho yelanga iphakela ibhange lebhethri. Uma ukusistimu eboshwe ngegridi, cishe awusidingi isilawuli seshaja yelanga.
